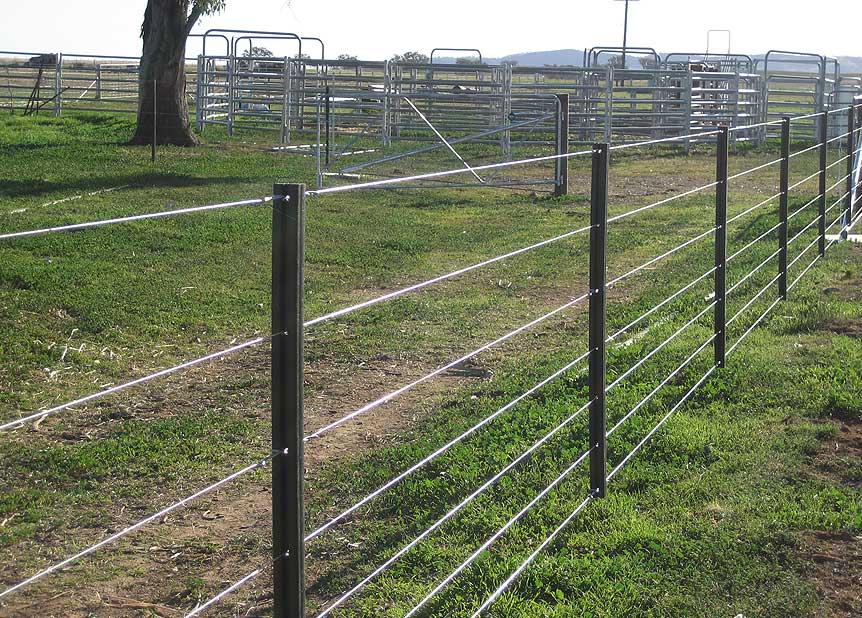

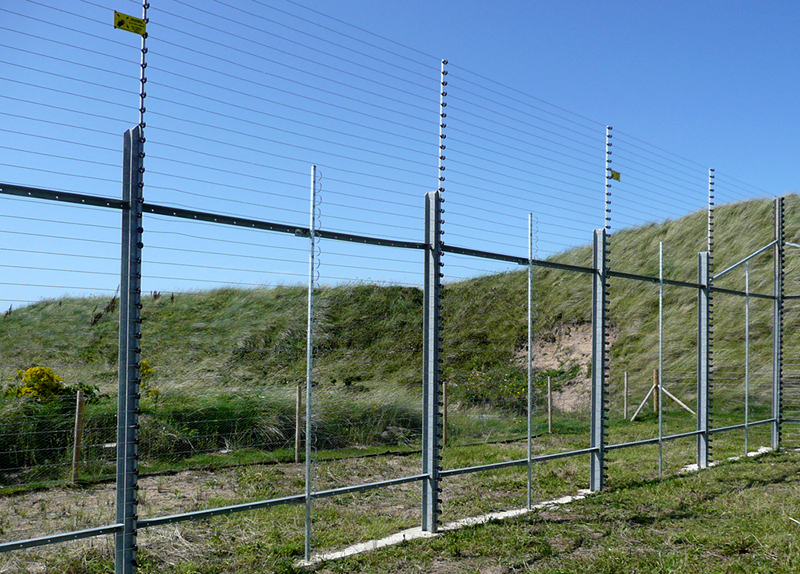

Solar Fence Protection
Dr.MAK Engineering & Services operates on the premise that any animals that come into contact with the fence will receive a brief, but painful, shock. Even if one animal in the herd is shocked, the rest of the herd will stay away from the solar fence.
How the Solar Fence Deter the animals
Dr.MAK’s Solar Fence has comprehensive crop raiding solutions. The intruding animal, the terrain, the sail conditions, and the length of the fence all influence the construction of our fences. Through years of field experience and knowledge of animal behavior, our design for each species or species combination has evolved. Energizers, spares, wires, insulators, fence posts, tools, and accessories are all provided, installed, and serviced by Dr.MAK Engineering & Services. All components have been thoroughly tested to ensure that they comply with both domestic and international standards.
|
1.Solar Photovoltaic Module |
|
|
Type |
Mono crystalline |
|
Peak Power Output |
50 / 72 Watts / 12V – 2.25A Depending upon total
Running Meters |
|
2. Energizer |
|
|
Input Voltage |
: 12V |
|
Peak Out Put Voltage |
: 10.5Kv |
|
RMS Current |
: 7.9Ams |
|
Pulse Interval |
: 1.3 Sec. |
|
Duration Of Impulse |
: 0.9 Sec. |
|
Pulse Energy Max. |
: 5 Joule |
|
BIS Standard Specification 302-2-76 |
|
|
Shall Be |
< 10Kv |
|
Shall Be |
< 10 Ams |
|
Shall Be Between |
1 to 1.5 Sec. |
|
Shall Not Exceed |
1 Sec. |
|
3. Fence Alaram |
|
|
The alarm will immediately sound when an animal
touches the fence. If the fence wire is broken, the energizer isn't working,
and you can hear the alarm going off. For an additional fee, we will supply
an external horn for monitoring purposes. |
|
|
4. Battery |
|
|
Type |
: Low maintenance lead acid battery – Solar
Tubular / SMF |
|
Capacity |
: 12V 65AH |
|
5. Module Mounting Structure |
|
|
Type |
: MS Pole type |
|
Battery Box |
:Iron Box with locking facility fully painted for
rust proof |
|
6. Fence wire |
|
|
Type |
: 12 SWG /GI-High carbon wire for rust proof
20years Guaranteed. |
|
7. Tying Wire |
|
|
Type |
: 14 SWG/GI-wire 15 micron
zinc coated for tying insulator |
|
8. Reel Insulator |
|
|
Type |
: Poly proplence vergin UV stabilized |
|
9. Strain Insulator |
|
|
Type |
:Vergin Poly carbons
materials UV stabilized |
|
10. Permanent Wire tightener |
|
|
Type |
: Special aluminiam
alloy designed for 250kgs/ft Breaking force |
|
11. Joint Clamp |
|
|
Type |
: Hot dip galvanized washer, bolt and nut for
rust proof |
|
12. Gate Handle |
|
|
Type |
: Heavy insulated security / rated for 15kv. |
|
13. Intermediate Post |
|
|
Type |
: MS-T Angle 1” x 1” x 3mm with painted for rust
proof. |
|
14. Corner Post |
|
|
Type |
: GI-Clause B type – 2” Dia
with painted for rust proof. |
|
15. Support Angle |
|
|
Type |
: GI-clause B type – 1” dia
with painted for rust proof. |
|
16. Leadout cable |
|
|
Type |
: Heavy double insulated cable. |
|
17. Permanent tension spring |
|
|
Type |
: 7mm Thickness Hot dip galvanized special
spring. |
|
18. Earthing Pipe |
|
|
Type |
: 1” clause B type GI with hot dip galvanized
clamp. |
|
19. Neon Tester |
|
|
Type |
: For indicating fence condition |
|
20. Lightning diverter kit |
|
|
Type |
: Protection of Energizer and fence from
lightning strikes |
|
21. Monitoring Equipment |
|
|
Type |
: Fence live light |
Solar Fence Safety
Any animal can be rescued from any crop, including plantations. Solar fences have been used to control everything from pigs to elephants in a wide variety of ways. The advantages are numerous. Fence Level Monitor – Designed energy levels on the fence deter the animal effectively.
Vigilance around the clock: Dr.MAK’s Solar Fence operates continuously, 24 hours a day, seven days a week.
Eco-friendly- Dr.MAK’s Solar System for crop damage control uses solar energy. The systems are completely eco-friendly, reducing conflicts between humans and animals and protecting crops as well as wild life species.
Quality System: Parts and the fence will last a long time if they are designed well, used in high-quality ways, and installed correctly.
Fence maintenance: Dr.MAK’s Solar systems don't use a lot of power and don't need to be fixed all the time. The only requirement is to keep vegetation out of the fencing.
Our service moto is prompt service and support from our network. We also sign annual operational maintenance contracts with authorized dealers to keep the Solar Power Fence running smoothly.

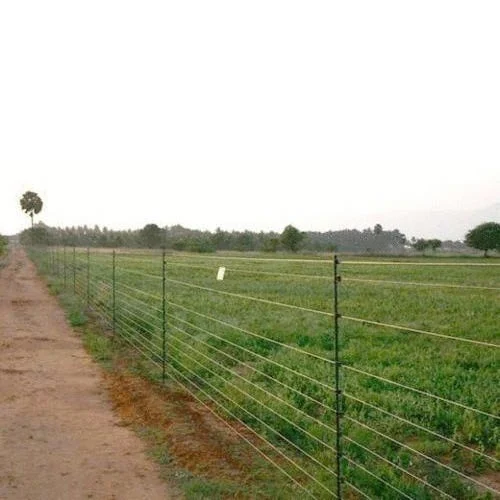

Application Areas Dr.MAK’s Solar Fencing is used to control animal crop damage, vandalism, and theft in tea and coffee estates, and our fence system has been used to reduce conflicts between humans and animals by forest departments and wildlife research organizations. Dr.MAK’s Solar Fence is widely used by village communities near national parks and forests to protect their crops from elephants, pigs, cattle, and other herbivores.
